7I43  FPGA based USB/EPP Anything I/O card
 The MESA 7I43 is a low cost, general purpose programmable I/O card that connects to the host computer via USB or PC parallel port. The 7I43 uses a 200K or 400K gate Xilinx FPGA for all logic, so it is truly an Anything I/O card. The FPGA is downloadable from the USB or Parallel port bus side, and also has the capability of local configuration storage in an on card EEPROM. Efficient switching regulators are used for FPGA core and 3.3V power, allowing the 7I43 to be USB bus powered. The 7I43 can also be powered by an external 5V source. A FTDI FT245R USB interface chip is used for the USB interface. Drivers are available for Windows and Linux. The drivers avaliable for the FT245R make the software interface a simple buffered byte stream. Parallel port bus interface uses EPP mode.  A 50 MHz oscillator provides the FPGA clock. This clock can be multiplied or divided in the FPGA for other clock rates. The 7I43 has 48 I/O bits available on two 50 pin connectors. Both connectors use I/O module rack compatible pinouts. All I/O bits are 5V tolerant, and have series and parallel termination options (DCI). The I/O connectors are compatible with our 7 series daughter cards for isolated I/O, motion control and other applications. Configurations are provided for simple GPIO, Smart Motion control (SoftDMC), host based motion control (HostMot2), and a waveform generator.

DATASHEET --- MANUAL --- SUPPORT SOFTWARE


 The MESA 5I20 is a general purpose programmable I/O card for the PCI bus. The 5I20 uses a  200K gate Xilinx FPGA for all logic, so it is truly an Anything I/O card. The FPGA is downloadable from the PCI bus side, allowing creation of almost any kind of specialized I/O function, even including micro-controllers in the FPGA.   Several pre-made functions are provided, including  a 12 channel host based servo motor controller, a  4 or 8 channel micro-controller based servo motor controller (micro-controller CPU built into FPGA), and a 8 channel, 32 bit timer counter card capable of running at 100 MHz. VHDL source is provided for all examples.   All I/O bits are 5V tolerant and can sink 24 mA. Pullup resistors are provided for all pins so that they may be connected directly to opto-isolators, contacts etc.   The 5I20 has 72 I/O bits available on three 50 pin connectors, all connectors use I/O module rack compatible pinouts.



DATASHEET --- MANUAL---SUPPORT SOFTWARE

5I21  FPGA based PCI  RS-422/RS-485 I/O card


  The MESA 5I21 is a programmable serial interface card for the PCI bus. The 5I21 is designed for applications using RS-422 and RS-485 interfaces. The 5I21 can support up to 12 full duplex RS-422 or half duplex RS-485 serial links with baud rates up to 10 M baud. The 5I21 uses a 400K gate Spartan3 FPGA and a bus mastering PCI bridge for high performance. Since all serial logic is FPGA based, almost any RS-422/RS485 protocol can be supported. The I/O connector is a 68 pin high density type compatible with standard 100 ohm differential cables. On card serial line termination includes idle line pullups and pulldowns to guarantee a valid undriven input state. The 5I21 is suitable for high performance motion control systems, Industrial I/O, Custom real time distributed I/O, time code generation, supporting legacy hardware, and almost any high speed serial interface application that requires a flexible, high performance, universal serial interface card.

5I22 FPGA based PCI  Anything I/O card


  The MESA 5I22 is a general purpose programmable I/O card for the PCI bus. The 5I22 uses a  1 or 1.5M gate Xilinx FPGA for all logic, so it is truly an Anything I/O card. The FPGA is downloadable from the PCI bus side, allowing creation of almost any kind of specialized I/O function, including micro-controllers in the FPGA.   Several pre-made functions are provided, including  a 16 channel host based servo motor controller, a  4 or 8 channel micro-controller based servo motor controller (DSP built into FPGA), and a 8 channel, 32 bit timer counter card capable of running at 200 MHz. VHDL source is provided for all examples.   All I/O bits are 5V tolerant and can sink 24 mA. One connector supports LVDS signaling on 10 pairs. Pullup resistors are provided for all pins so that they may be connected directly to opto-isolators, contacts etc.   The 5I22 has 96 I/O bits available on four 50 pin connectors, all connectors use I/O module rack compatible pinouts.

5I23 FPGA based PCI  Anything I/O card


  The MESA 5I23 is a general purpose programmable I/O card for the PCI bus. The 5I23 uses a 400K gate Xilinx FPGA for all logic, so it is truly an Anything I/O card. The FPGA is downloadable from the PCI bus side, allowing creation of almost any kind of specialized I/O function, including micro-controllers in the FPGA.   Several pre-made functions are provided, including  a 12 channel host based servo motor controller, a  4 or 8 channel micro-controller based servo motor controller (DSP built into FPGA), and a 8 channel, 32 bit timer counter card capable of running at 100 MHz. VHDL source is provided for all examples.   All I/O bits are 5V tolerant and can sink 24 mA. One connector supports LVDS signaling on 10 pairs. Pullup resistors are provided for all pins so that they may be connected directly to opto-isolators, contacts etc.   The 5I23 has 72 I/O bits available on three 50 pin connectors, all connectors use I/O module rack compatible pinouts.

7I60 FPGA based standalone Anything I/O card

 The 7I60 is a standalone (no bus) version of the FPGA based Anything I/O card series. It provides 96 I/O bits and 4 serial ports.   There are 2 RS-232 ports and 2 RS- 485 ports. One of the RS-232  serial ports is used for downloading initial configurations to the on-card Flash EEPROM for FPGA configuration, the other ports can be used for any purpose.  The 96 I/O bits are available on four 50 pin connectors, 24 bits per connector. The 50 pin connectors have I/O module rack compatible pinouts. The connector pinout uses interleaved grounds for lower crosstalk and controlled impedance. Socketed pull-up resistor networks (or optional termination networks) are provided for all I/O bits.   PwrGood, Done, Init and status LEDs are provided for debugging puposes as are 8 FPGA driven LEDs and a FPGA driven beeper. Several I/O interface daughter cards are available for the 7I60. These cards include a 4 axis 3A Hbridge, a 2 Axis 3A stepper motor driver, an analog servo amp. interface, an RS-422/485 interface, and a debug LED card. 2 daughter cards can plug directly onto the 7I60.  Many IO configuration files are provided with the 7I60 including simple remote I/O, smart remote I/O, 4 and 8 axis servo motion control, 4 and 8 axis microstepping stepper motor control, multiple channel PWM generator, quadrature counters and more. VHDL source is provided for all configurations.  2 FPGA system clocks are provided: a 50MHZ Crystal and a 25, 33, 50, 66, 80 MHz PLL.  The 7I60 uses a 200K gate Xilinx SpartanII FPGA. Free development tools for The SpartanII are available (Xilinx WebPack) from Xilinx s web site.

DATASHEET --- MANUAL---SUPPORT SOFTWARE  --- SOFTDMC MANUAL

4I20 Power driver card

The 4I20 is a stackable PC/104 card with 24 open drain 350 mA outputs for solenoids, valves, relays, motors, incandescent lamps and other medium power DC loads. The 4I20 outputs are galvanically isolated from logic ground to avoid ground loops, as the total ground return current be as much as 8.4 amps. The isolation also allows the 4I20 to drive ground referred loads. The 4I20 has readback capability on all outputs to verify output switching, and allow unused outputs to be used as input bits. The output drivers on the 4I20 (TI TIPC6A259) have a built-in 800 mA current limit and are protected against short circuits and capacitive loads with a unique chopping current limit system. The outputs have built in 50V clamp diodes to allow driving inductive loads without external flyback diodes. The 4I20 output connector is a 50 pin header with I/O module compatible pinout (interleaved grounds), allowing the 4I20 to drive unbuffered OPTO-22 style I/O module racks. All outputs have optional (plug in) pullup resistors that can be powered from the isolated 5V power on the 4I20 or external power. The 4I20 input and output are organized as a 24 bit multiplexer and a 24 bit addressable latch. This allows simple addressing of single I/O bits. All 4I20 access is through a single 8 bit I/O port.

DATASHEET --- MANUAL---SUPPORT SOFTWARE

 4I22 timer/counter + parallel I/O card

The 4I22 is a stackable PC/104 card with nine, 16 bit counters and 24 digital I/O bits. A 10 MHz and a 25 MHz models are available. An on card 10 or 25 MHz trimmable crystal oscillator is provided as a time base. The 82C54 counters on the 4I22 may be used for event counting, frequency counting, period measurement, frequency generation, pulse width modulators, digital one shots, interrupt timers and many other timing and counting uses. Example programs and source code are provided to illustrate most of these 4I22 applications. Eight of the nine counters on the 4I22 have external clock, gate, and output connections. Counter clock source of these counters can be the external input or the on card time base The ninth counter is used as a optional 10 or 25 MHz time base prescaler for the other eight counters. Gate and output polarity can be jumper selected as active high or low. 24 general purpose I/O bits are provided by a 82C55 PIA. Pullup resistors on the parallel I/O simplify connection to contact closure, Opto-detector, and open collector inputs. Timer and digital I/O connectors are 50 pin headers with I/O module rack compatible pin-outs. This connector pin-out has all input and output signals interleaved with grounds to reduce crosstalk. The 4I22 is an 8 bit card, but uses the stack through 16 bit PC/104 card format to allow access to all of the AT bus interrupts. Two of the counters on the 4I22 can generate interrupts. The IRQ line selection is software programmable (no interrupt jumpers!)

DATASHEET --- MANUAL---SUPPORT SOFTWARE

4I24  72/96 bit parallel I/O cards

The MESA 4I24 series of cards are 96 or 72 bit parallel I/O interfaces implemented on the PC/104 bus. The 4I24 uses 4 (4I24, 4I24I) or 3 (4I24M) socketed 82C55 PIO chips to give for a total of 96 I/O bits (4I24, 4I24I) or 72 I/O bits (4I24M). 3.3K Pullup resistors are provided on all ports to simplify interfacing to contact closure, opto-isolators, etc. The 4I24 series includes three models with different I/O connectors. The standard 4I24 uses two 50 pin headers for I/O connections. The 50 pin connectors each have 48 I/O bits, ground, and power. The 4I24I uses four 26 pin headers with ISO standard pinout (24 I/O bits per 26 pin connector, pin 2 = gnd, pin 26= 5V). The 4I24M has I/O module rack compatible pinouts with three 50 pin connectors each having 24 I/O bits with interleaved grounds. 5V power on the I/O connectors is fused on the 4I24. All 4I24 models use the 16 bit stack through type PC/104 bus architecture. Four layer circuit card construction is used to minimize radiated EMI and provide optimum ground and power integrity. All CMOS design keeps power consumption to a minimum.

DATASHEET --- MANUAL(4I24)---MANUAL(4I24I)---MANUAL(4I24M)

SUPPORT SOFTWARE

4I24H  High current 96 bit parallel I/O card

The MESA 4I24H is a 96 bit parallel I/O interface implemented on the PC/104 bus. The 4I24H is functionally the same as the 4I24 but has outputs capable of driving 24 mA. CPLD devices are used to emulate the 82C55s used on the 4I24. The CPLD support all mode 0 82C55 operations. 3K Pullup resistors are provided on all ports to simplify interfacing to contact closure, opto-isolators, etc. The standard 4I24H uses two 50 pin headers for I/O connections. The 50 pin connectors each have 48 I/O bits, ground, and power. Four layer circuit card construction is used to minimize radiated EMI and provide optimum ground and power integrity.

DATASHEET --- MANUAL(4I24H)---SUPPORT SOFTWARE

4I70 PC/104-PCI Remote bridge

  The 4I70 is a PCI to PCI Express or PCI express to PCI bridge on a PC/104-PCI card. Two 4I70 cards and a single lane Infiniband cable make complete remote PCI bridge system for the PC/104-PLUS bus. The 4I70 allows remote expansion of PC/104-PCI systems and solving problems with PC/104-PCI card stack mechanical constraints. The 4I70 can also allow Data Acquisition and Wireless peripheral cards to be placed in ideal locations, which may be at some distance from the host CPU. The 4I70 also allows testing of PC/104-PCI cards without powering down the host. Normally 4I70 cards are used in pairs, one jumpered for forward bridge mode (PCI-Express to PCI) and one jumpered for reverse bridge mode (PCI to PCI Express). The two 4I70 cards connect via a single lane Infiniband cable and bridge a PC-104/PCI stack with the CPU to a remote stack that can support up to 4 bus master PC/104-PCI peripheral cards. The remote 4I70 can be up to 5 meters from the local 4I70. The 4I70 has a built in 3.3V power supply and can provide up to 2.5 Amps of 3.3V power to the remote peripheral stack so that only a single 5V power supply is required.


  DATASHEET --- MANUAL

5I70 PCI-PCI Express bridge

4I38  FPGA based Anything I/O card

  The MESA 4I38 is a general purpose programmable I/O card for the PC/104 bus. The 4I38 uses a 1M or 1.5M gate Xilinx Spartan 3 FPGA for all logic, so it is truly an Anything I/O  card. The FPGA can be configured from the PC/104 side or can be configured automatically at power up via the on card serial flash EEPROM. All PC/104 lines are connected to the FPGA, allowing the 4I38 to be used a a PC/104 bus master or for testing PC/104 cards. 48 I/O lines are provided via two 50 pin connectors with I/O module rack compatible pinouts and interleaved grounds. A full Duplex RS-422 port is also provided for remote communication.

DATASHEET --- MANUAL---SUPPORT SOFTWARE


4I39  FPGA based Anything I/O card with isolated RS-422 interface

  The MESA 4I39 is a general purpose programmable I/O card for the PC/104 bus. The 4I39 uses a 200K gate Xilinx FPGA for all logic, so it is truly an Anything I/O  card. The 4I39 is designed for RS-422 applications and provides 8 full duplex isolated RS-422 interfaces. Each interface is capable of 10 Mb per second communication. The FPGA configuration is downloaded from the PC/104 bus interface. In addition to the RS-422 I/O, 24 5V tolerant TTL I/O lines are provided via a 50 pin connector with I/O module rack compatible pinout. The 4I39 is useful for motion control systems, interfacing SSI type encoders, as a general purpose high speed serial interface card, interfacing legacy hardware and devices with proprietary protocols.

DATASHEET --- MANUAL---SUPPORT SOFTWARE

  The MESA 4I34 is a general purpose programmable I/O card for the PC/104 bus. The 4I34 uses a 100K or 200K gate Xilinx FPGA for all logic, so it is truly an Anything I/O  card. The FPGA is downloadable from the PC/104 bus side, allowing creation of almost any kind of specialized I/O function, including micro-controllers in the FPGA.   Several pre-made functions are provided, including a 64 channel event capture card, an 8 channel host based servo motor controller, a 4 channel micro-controller based servo motor controller (micro-controller CPU built into FPGA), and a 8 channel, 32 bit timer counter card capable of running at 100 MHz. VHDL source is provided for all examples.   All I/O bits are 5V tolerant and can sink 24 mA. Pullup resistors are provided for all pins so that they may be connected directly to opto-isolators, contacts etc.   The 4I34 is available in 2 versions, the 4I34 with 64 I/O bits and the 4I34M with 48 I/O bits. The 4I34 uses two 40 pin connectors with proprietary pinouts, while the 4I34M uses two 50 pin connectors with I/O module rack compatible pinouts and interleaved grounds


  DATASHEET --- MANUAL(4I34)---SUPPORT SOFTWARE

4I65 FPGA based PC104-PLUS Anything I/O card

 The MESA 4I65 is a general purpose programmable I/O card for the PC/104-PLUS bus. The 4I65 uses a  200K gate Xilinx FPGA for all logic, so it is truly an Anything I/O card. The FPGA is downloadable from the PC/104-PLUS bus side, allowing creation of almost any kind of specialized I/O function, even including micro-controllers in the FPGA.   Several pre-made functions are provided, including  a 12 channel host based servo motor controller, a  4 or 8 channel micro-controller based servo motor controller (SoftDMC), and a 8 channel, 32 bit timer counter card capable of running at 100 MHz. VHDL source is provided for all examples.   All I/O bits are 5V tolerant and can sink 24 mA. Pullup resistors are provided for all pins so that they may be connected directly to opto-isolators, contacts etc.   The 4I65 has 72 I/O bits available on three 50 pin connectors, all connectors use I/O module rack compatible pinouts. Several I/O interface daughter cards are available for the 4I65. These cards include a 4 axis 3A Hbridge, a 2 Axis 3A stepper motor driver, an analog servo amp. interface, an RS-422/485 interface, and a debug LED card.


4I68 FPGA based PC104-PLUS Anything I/O card

  The MESA 4I68 is a general purpose programmable I/O card for the PCI bus. The 4I68 uses a 400K gate Xilinx Spartan3 FPGA for all logic, so it is truly an  Anything I/O  card. The FPGA configuration is downloadable from the PCI bus side, allowing creation of almost any kind of specialized I/O function. The 4I68 uses a bus mastering PCI bridge to give  the card the ability to work with both 5V and 3.3V PCI buses and support high FPGA/PCI bus transfer rates.  Several pre-made functions are provided, including a 12 axis host based servo motor controller, a 24 channel quadrature counter, an 8 axis micro-controller based servo motor controller (SoftDMC), a simple 72 bit parallel I/O port, and a 12 channel, 32 bit timer counter card capable of running at 100 MHz. VHDL source is provided for all functions.
The 4I68 uses three 50 pin connectors with I/O module rack compatible pin-outs and interleaved grounds. Two of the connectors support single ended 3.3V signals. One connector supports 3.3V or 2.5V signals and LVDS. DCI termination is supported on all I/O pins. Each connector provides 24 I/O bits for a total of 72 programmable I/O bits.  A 50 Mhz crystal oscillator provides a reference clock which can be multiplied by the FPGAs DLLs for higher clock speeds. Several I/O interface daughter cards are available for the 4I68. These cards include a 4 axis 3A Hbridge, a 2 Axis 3A stepper motor driver, an analog servo amp. interface, an RS-422/485 interface, and a debug LED card.


7I34 Eight Channel RS-422/485 interface

The 7I34 is a 8 channel RS-422 interface for Mesa s Anything I/O series of FPGA interface cards. The 7I34 has 8 independent receive and transmit channels. Each transmit channel has a independent drive enable for bus or 2 wire half duplex systems.  The controller connection is a 50 pin header that matches the pinout or the 4I34M, 4I38, 4I65,  4I68, 5I20, 5I22, 5I23, 7I43 and 7I60 Anything I/O cards. Another 50 pin header is used for RS-422 connections.   The 7I34 has an assembly option for receive only applications. This model (7I34-R) has 16 RS-422 inputs but no outputs .Another assembly option (7I34-485) replaces the drivers with RS-485 compatible chips.  The 7I34 can be used with an Anything I/O card for multiple channel RS-422 serial interfaces, encoder interfaces, and many other industrial applications.

7I44 Eight Channel RS-422/485 interface/ RJ45 Breakout

The 7I44 is a 8 channel RS-422 interface for Mesa s Anything I/O series of FPGA interface cards. The 7I44 has 8 independent receive and transmit channels. Each transmit channel has a independent drive enable for bus or 2 wire half duplex systems.  The controller connection is a 50 pin header that matches the pinout or the 4I34M, 4I38, 4I65,  4I68, 5I20, 5I22, 5I23, 7I43 and 7I60 Anything I/O cards. Serial I/O  connectors are RJ45 jacks allowing standard CAT5 cables to be used for high speed serial links.
The 7I44 also supplies 5V power on the RJ 45 connectors. PTC devices limit maximum 5V current to 1A . The pinout used is compatible with Mesa's 3C20 motion controller and the 8I20, 8I21 serially connected amplifiers.

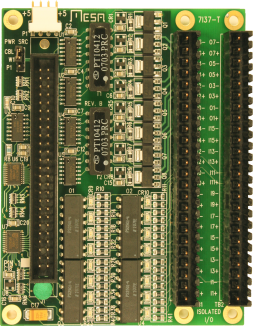

7I37/7I37T Isolated I/O card

The 7I37 is an 8 output, 16 input isolated I/O card. The 7I37 provides 8 Isolated 48VDC 1A output drivers. All output drivers are low saturation voltage MOSFETS for low power dissipation. Each of the 8 output switches is isolated from the others, allowing high side, low side, push-pull and other output switch configurations. The 16 opto isolated inputs will operate with input voltages from 5 to 24 V. Reverse protection diodes are provided to allow use with AC inputs. The 7I37 is compatible with the 4I24M, 4I24H, 4I34M, 4I38, 4I65, 4I68, 5I20, 5I22, 5I23, 7I43 and 7I60 I/O cards. The 7I37T version replaces the 50 pin header output connector with 3.5mm headers compatible with pluggable screw terminal blocks.
Two TB24 pluggable terminal blocks are required for use with the 7I37T (not included).

7I64 Isolated I/O card

The 7I64 is an 24 output, 24 input isolated I/O card. The 7I64 provides 24 isolated 48VDC 2.5A output drivers. All output drivers are low saturation voltage MOSFETS for low power dissipation. Each of the 24 output switches is isolated from the others, allowing high side, low side, push-pull and other output switch configurations. A built in watchdog timer turns all outputs off if the 7I64 is not accessed within a selectable watchdog timeout interval. The 24 opto isolated inputs will operate with input voltages from 5 to 24 V. Reverse protection diodes are provided to allow use with AC inputs. The 7I64 has three host interface  methods, USB, Serial RS-422 and SPI. The 7I64 can be USB powered. The serial interface supports baud rates from 115.2 K baud to 2.5 M baud. The SPI interface is compatible with MESAs Anything I/O cards and support high speed real time I/O. A SPI breakout card (7I46) allows up to six 7I64s to connect to a single 50 pin Anything I/O connector. The SPI interface supports data rates to 8 Mbps so a full read/write of all 48 I/O bits takes approximately 4 uSec. 3.5 mm screw pluggable screw terminals are used for all isolated I/O.

DATA SHEET --- 7I64 MANUAL


---

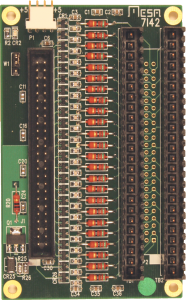

7I42/7I42T Breakout/FPGA protection card

The 7I42 is a breakout card for Mesa's 50 pin I/O FPGA cards. It is available with 50 pin .1" output connector (7I42)  or 3.5mm headers compatible with pluggable screw terminal blocks (7I42T). In addition to providing a breakout function, the 7I42 protects the FPGA card from excessive input voltages and ESD. The 7I42 protects FPGA I/O from accidental contact from external voltages of +12 and -5V with built in diode clamps and 50 Ohm current limit resistors in series with all I/O pins. The 7I42 limits I/O pin bandwidth to approximately 10 MHz. Two TB24 pluggable terminal blocks are required for use with the 7I42T (not included).

---

4P20 PC/104-PLUS  Power Over Ethernet card

The MESA 4P20 is a 11W POE power supply for PC/104 and PC/104-PLUS systems. The 4P20 allows a remote PC/104 system to get power and high speed communication from a single CAT5 cable up to 100 Meters long. The 4P20 supplies 5V at up to 2A, +12V at up to 200 mA and -12 at up to 100 mA via the bus connectors to the PC/104 stack. The POE connection is done as a feed-through tap so the Ethernet connection can be routed to a local Ethernet endpoint. Auxiliary power inputs are provided to allow external 18 to 60 VDC sources to power the 4P20 if POE is not available. PC/104 power is electrically isolated from POE or auxiliary source power.

DATASHEET --- MANUAL

---

ISIO Low cost isolated I/O driven by printer port

The MESA ISIO is a low cost isolated I/O card that is driven from a standard printer port. The ISIO has 4 relay or 4 transistor outputs and 8  opto-isolated inputs. Relay outputs are rated at 2A, 24VDC or 1A, 120VAC.  Transistor outputs are rated at 1A, 48VDC. Inputs are 10 to 48VDC.  All isolated I/O uses screw terminals.  Outputs are disabled at powerup until a specific 12  bit code is sent to the ISIO. This prevents inadvertant output activation during power-up. Up to 4 ISIO modules can share a single printer port. ISIO outputs can be latched so that accessing other ISIO modules on a shared port does not effect the output state .  The ISIO uses a PC/104 compatible form factor but does not use the PC/104 bus. Since it uses the parallel port, the ISIO can be located as far as 10 feet from the controlling CPU.



DATASHEET --- MANUAL---SUPPORT SOFTWARE

---

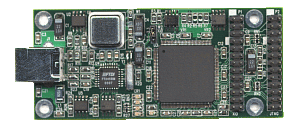

USB-JTAG: Low cost USB JTAG PROGRAMMER / MISC-IO

The MESA USB-JTAG is a low cost USB-JTAG programmer. All JTAG I/O logic and memory is implemented in the FPGA for flexibility and high performance. The JTAG interface supports shift rates from 250 KHz up to 48 MHz and will interface to 5V, 3.3V and 2.5V targets. USB-JTAG is USB bus powered so no awkward additional power supplies are needed. USB-JTAG can also be use as a general purpuse USB interfaced programmable I/O device. USB-JTAG is an open project with schematics, artwork, firmware, and operating software source code freely available. Software currently supports downloading bit files to Xilinx FPGAs and programming Xilinx CPLDs via SVF files. JTAG pinout is a superset of EJTAG with extra pins (EJTAG is central 14 pins of 26 pin JTAG header)



DATASHEET --- MANUAL---SUPPORT SOFTWARE

---
